Grafana App Health Plugin

The Luciq Grafana Plugin allows you to visualize mobile metrics alongside other metrics from different sources, such as product analytics and revenue metrics, all within a single pane of glass. Our pre-built dashboard captures all the essential mobile metrics, providing a comprehensive overview of your app's health without leaving Grafana.

Below are instructions on how to install, configure, and navigate through the app health plugin.

Install the Luciq Plugin

1

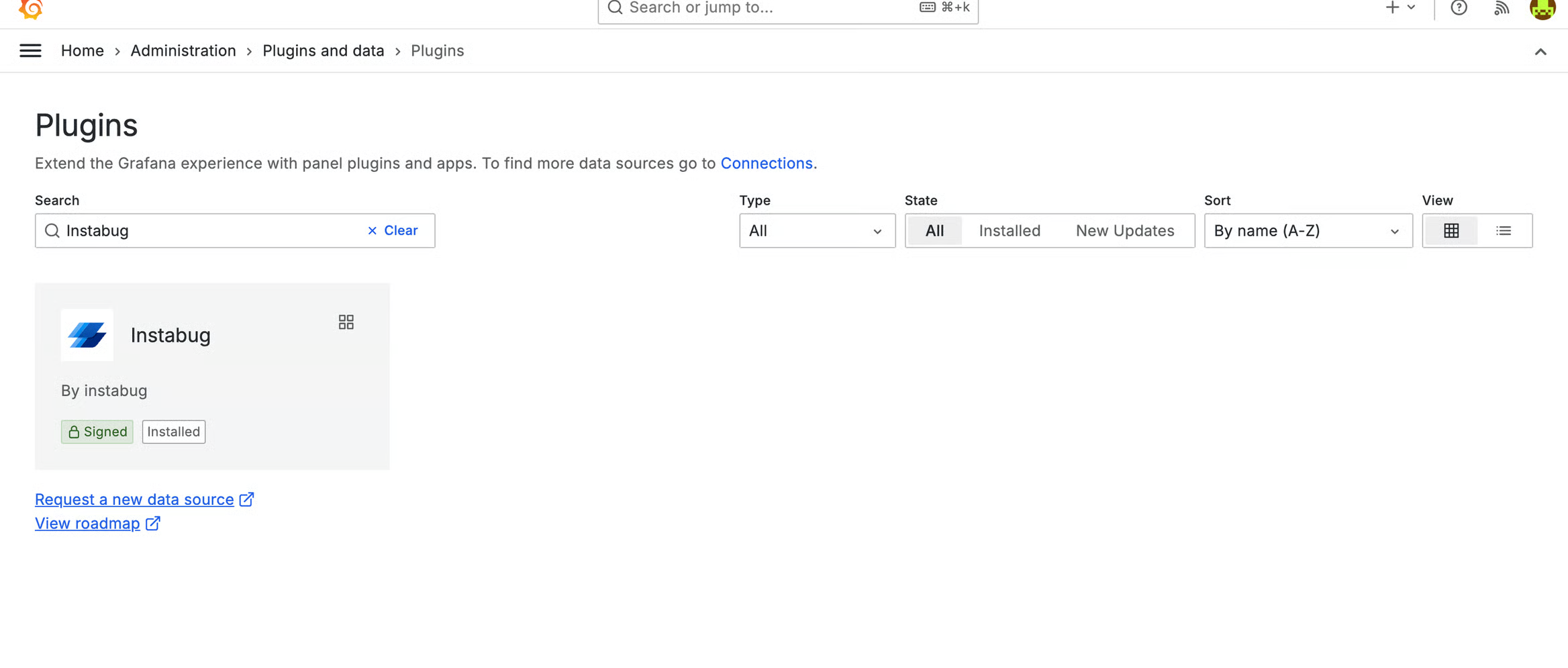

Open Grafana’s plugin directory

Search for "Luciq."

2

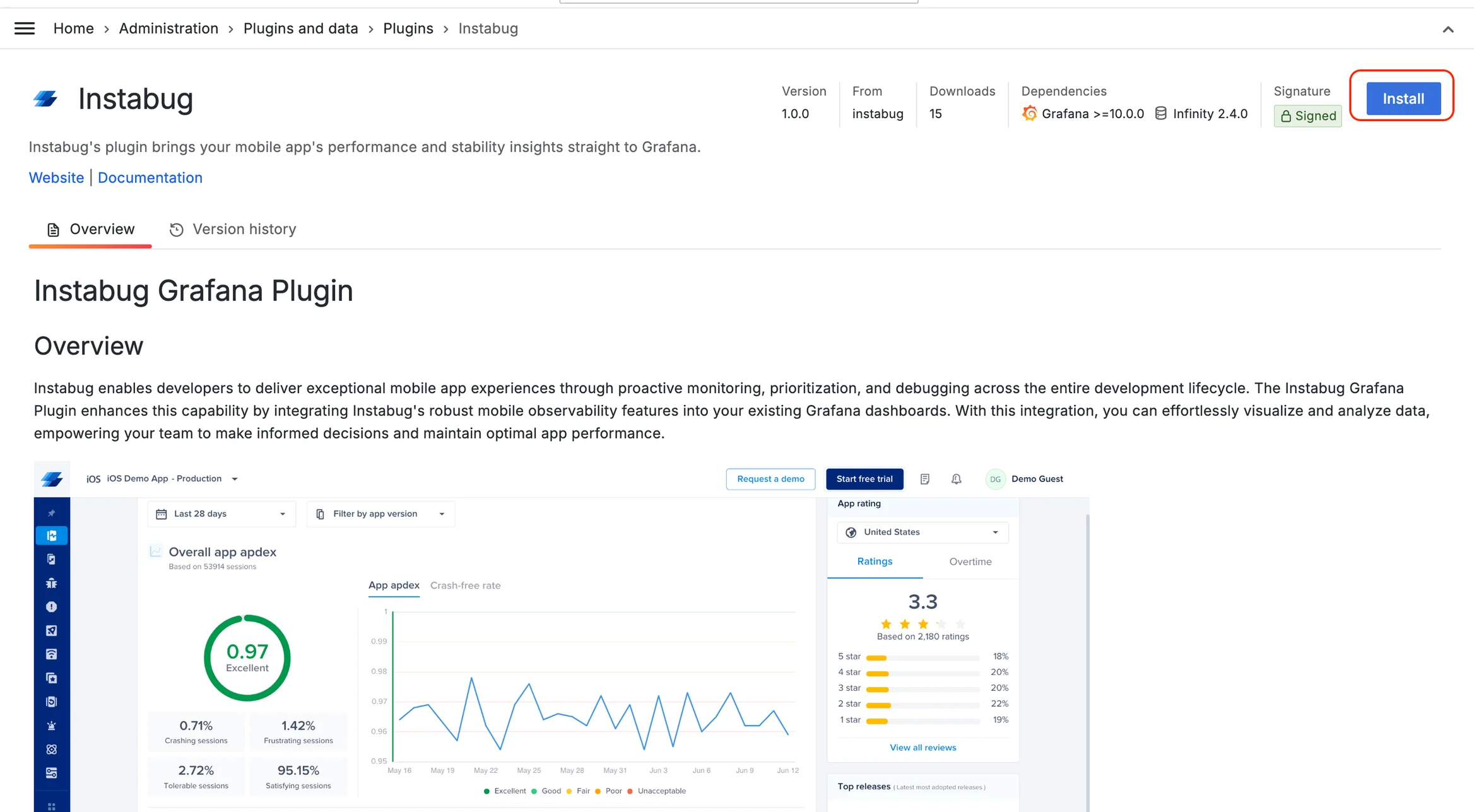

Install the Luciq Plugin

Configure the Luciq Plugin

After the plugin is installed, navigate to the Configuration tab. It may take a couple of minutes for the Configuration tab to appear while the plugin finishes installing. If it doesn't appear right away, refresh the page after a few minutes.

• Make sure the plugin is enabled.

Prerequisites:

• Ensure Grafana version 10.0.0 or higher is installed.

• Install the Infinity Plugin (v2.4.0 or higher).

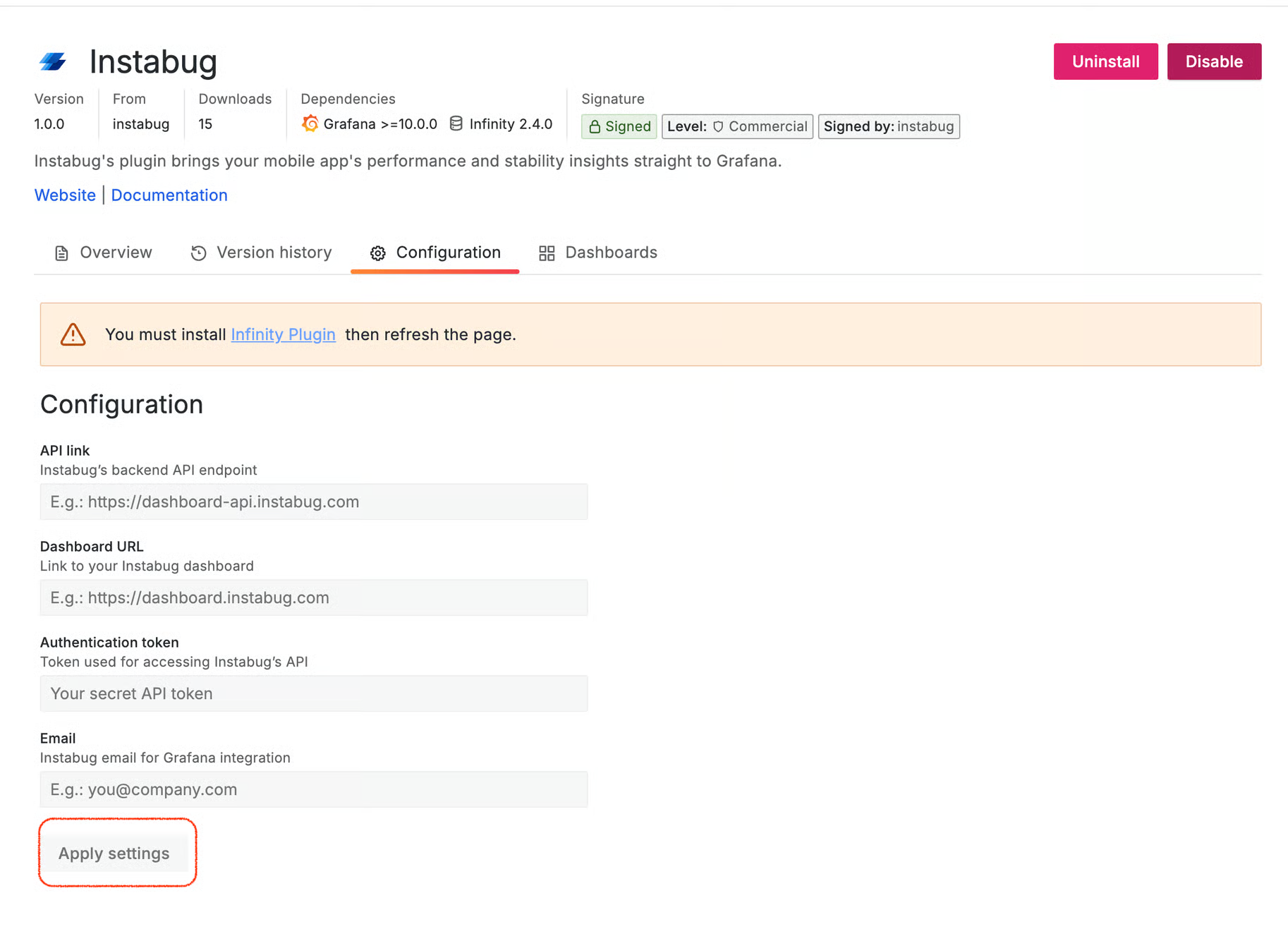

Configuration:

1

If Infinity Plugin is missing

If the Infinity Plugin is not installed, you'll receive a prompt to install it before proceeding.

2

Contact Luciq support for configuration fields

Contact the Luciq support team at [email protected] to receive the necessary configuration fields:

• API Link

• Dashboard URL

• Authentication Token

• Email

3

Apply settings

Once you have these fields, input the provided information in the plugin configuration page and click on “Apply Settings”.

Access the Pre-built Dashboard

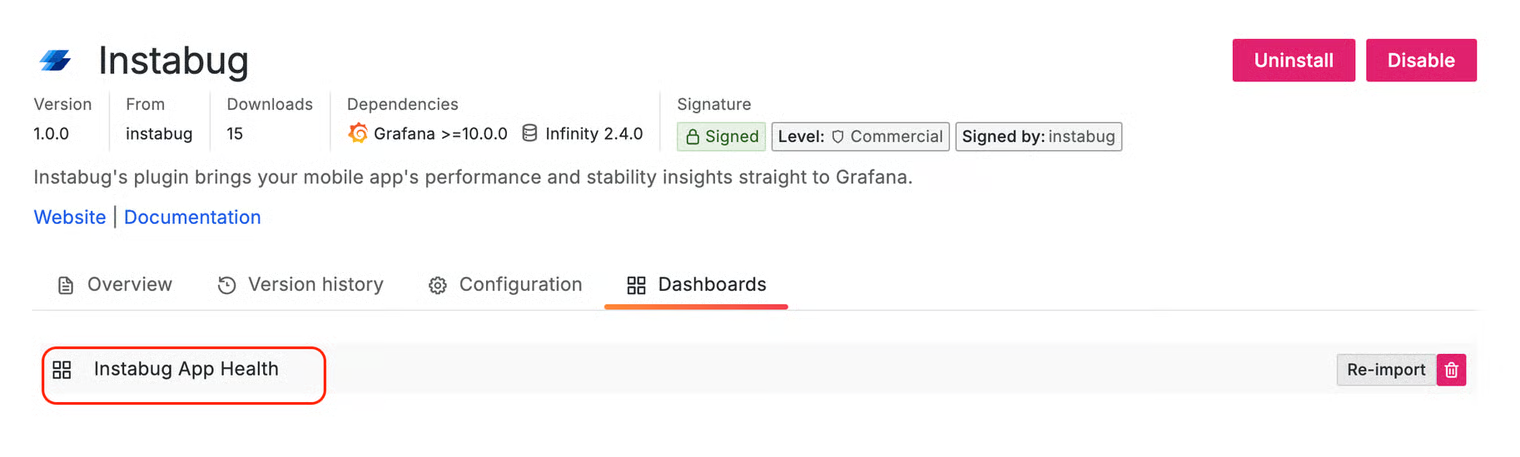

• After configuration, go to the Dashboards tab. The Luciq dashboard will be automatically imported.

• Open the Luciq App Health dashboard to view the health metrics for all your Luciq apps directly within Grafana.

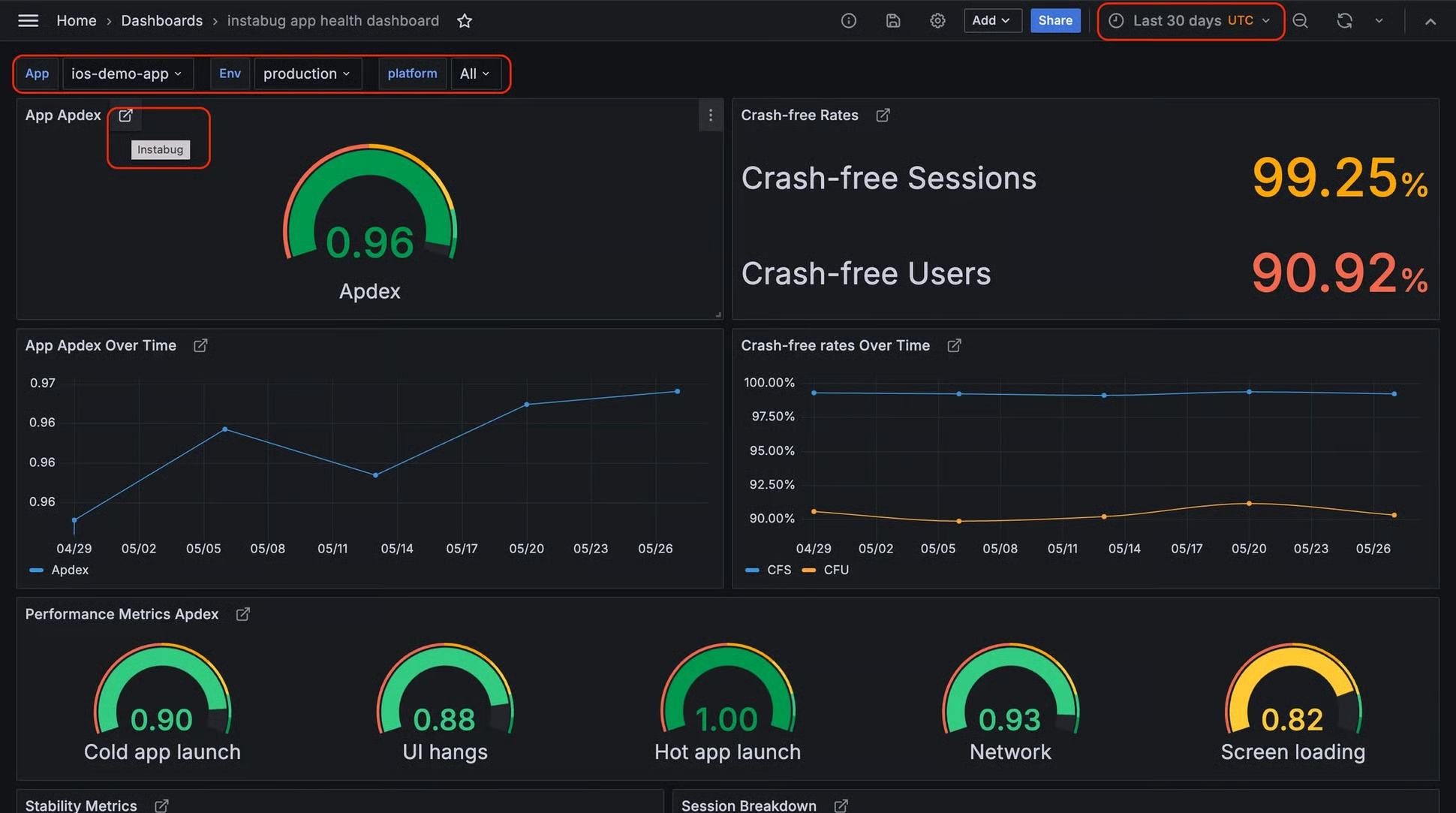

Luciq Grafana Dashboard Walkthrough

1

Filters available

You can filter by the following:

• App

• Environment

• Platform (for cross-platform applications)

• Date

2

Drill down into metrics

Gain a comprehensive overview of your app's stability and performance through our high-level metrics. To delve deeper into a specific metric, click the redirection icon to open the Luciq dashboard with the same applied filters for further analysis.
