Easily monitor your app’s performance and stability directly within Datadog by using our prebuilt Luciq Blueprint. This guide walks you through setting up the integration via HTTP, allowing you to visualize app health metrics like crash-free sessions, frustration-free sessions, and more.
📌 Prerequisites
A Datadog account with access to App Builder.
An Luciq account with access to your project's App Health dashboard.
Luciq API token and email (reach out to [email protected] to obtain these).
🛠️ Steps to Set Up the Integration
1
Navigate to App Builder
From the left-hand navigation in Datadog, go to Actions > App Builder.
2
Select “Blueprints”
Click on the Blueprints tab at the top to access available integrations.
3
Search for Luciq
In the search bar, type Luciq and select the blueprint titled Explore Luciq Sessions.
4
Click “Set up your connection”
Click the blueprint card to open the editor. On the left side, select New Connection.
5
Choose HTTP Connection
Select HTTP Connection as the integration method.
6
Fill in Connection Details
In the modal, enter the following:
Base URL: https://dashboard-api.instabug.com
Authentication Type: Token Auth
Add two token fields:
token → Luciq API token
email → Your registered Luciq email
Then under Request Headers, add:
authorization: Token token="{{ token }}", email="{{ email }}"
Click Next, Confirm Access.
7
Set Access Permissions
Choose who can access this connection (e.g., only you, the org, or a team), then click Create.
You should now see a success message indicating the connection was created.
✅ You’re Done!

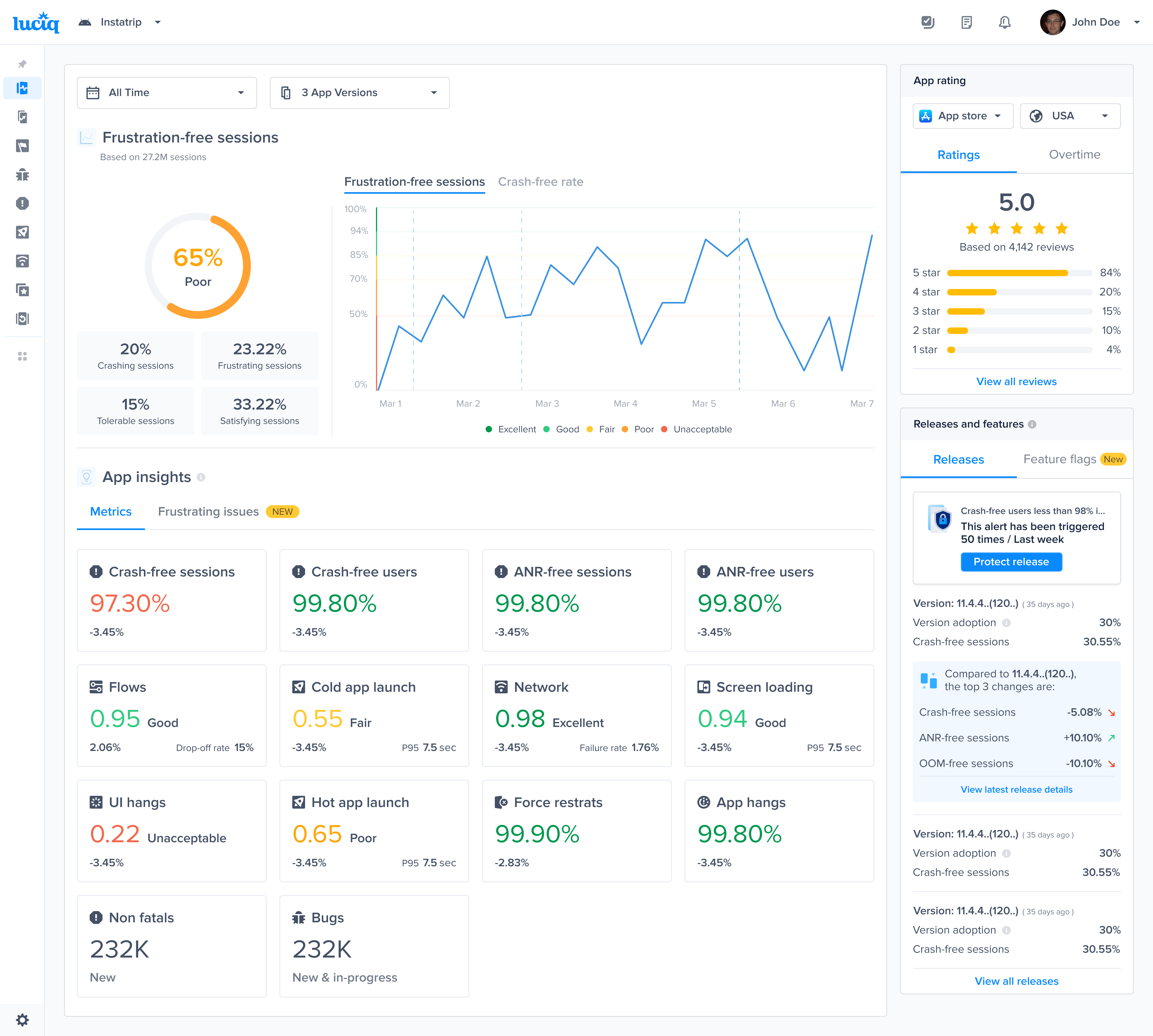

Once the connection is active, Datadog will begin visualizing live Luciq metrics like:
Crash-free sessions
Frustration-free sessions
Session breakdowns over time
You can now fully monitor app health using Datadog’s native dashboards powered by Luciq data.
🧠 Need Help?
If you run into issues, please reach out to [email protected] or your dedicated CSM.
